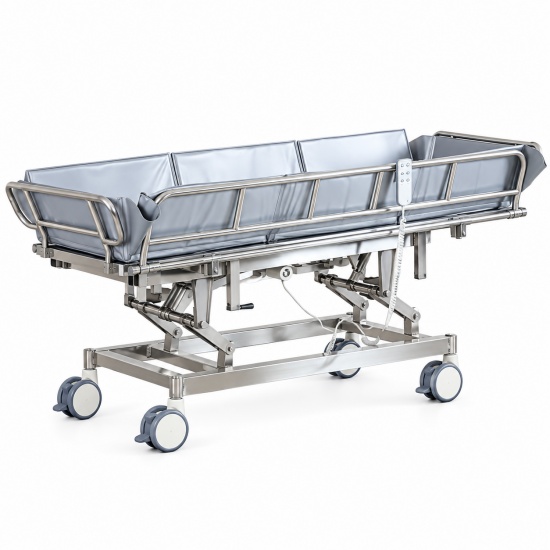

Electric Shower Trolley That Brings the Patient to a Better Working Height
One of the biggest challenges in assisted bathing is not simply moving the patient into a bathing area. Caregivers also need practical access to the patient throughout washing, drying and other hygiene procedures. A trolley that remains at one fixed height can make these repetitive tasks unnecessarily difficult.
This electric height adjustable shower trolley addresses that problem with two powered positioning functions: electric height adjustment and electric tilting. Combined with a full stainless steel structure, waterproof padded bathing surface, extended folding side rails and mobile caster base, it provides a purpose-built platform for assisted patient bathing in professional healthcare environments.
Two Electric Functions Focused on Assisted Bathing
Powered Height Adjustment from 430 to 660 mm
The patient platform can be electrically raised or lowered through a working range of 430–660 mm, excluding the side rails. Instead of requiring caregivers to perform every procedure at a fixed level, the trolley can be repositioned according to the task being carried out.
This powered adjustment is particularly useful during washing, skin care, drying, dressing and other procedures that require caregivers to access different areas around the patient.
Adjust the Equipment Instead of Repeatedly Adapting the Working Posture
For institutional care environments where assisted bathing is performed regularly, working height becomes an important practical consideration. Electric adjustment allows the trolley platform to be brought to a more suitable level before or during care, reducing dependence on a single fixed working position.
Powered Tilting for Additional Positioning Flexibility
A separate electric actuator controls the tilting movement of the trolley. This gives caregivers an additional method of adjusting the bathing platform according to different patient hygiene procedures.
The trolley therefore uses two electric actuators with clearly separated responsibilities: one for platform height adjustment and one for the tilting function. This straightforward configuration provides powered control of the two movements most directly related to the bathing workflow.
Built Specifically for Repeated Use in Wet-Care Areas
Stainless Steel Instead of a Conventional Painted Bed Structure
A shower trolley operates in a very different environment from a conventional patient bed. Water exposure, repeated cleaning and frequent hygiene procedures make material selection particularly important.
The main frame of this model is manufactured from 30 × 60 × 1.1 mm stainless steel rectangular tubing. The welded rectangular structure provides a robust mechanical foundation while making the trolley more suitable for repeated operation in wet-care environments.
Reinforced Stainless Steel Connecting Structure
The articulated platform incorporates 25 × 38 mm stainless steel connecting components. Together with the main frame, these components create a durable supporting structure for repeated powered adjustment.
Double-V Support Design Distributes Mechanical Loads
The moving platform uses a reinforced double-V support structure designed to distribute mechanical forces more evenly through the adjustment mechanism.
For healthcare facilities evaluating equipment for repeated daily operation, this is an important structural detail. Better load distribution helps reduce concentrated mechanical stress within the moving assembly and supports more stable long-term operation.
Waterproof Padded Surface Designed around Bathing Procedures
High-Toughness Waterproof Outer Material
The patient contact surface is manufactured from a high-toughness waterproof material suitable for bathing and hygiene procedures. Unlike an ordinary hospital mattress, this surface is designed for an environment where direct contact with water is expected during normal use.
High-Density EVA Padding Improves Patient Comfort
High-density EVA padding is incorporated inside the bathing surface to provide softer support for the patient. This is especially relevant for elderly, bedridden or mobility-limited patients who may need to remain on the trolley throughout the complete bathing procedure.
The bathing surface can also be removed for cleaning and disinfection, helping facilities incorporate the trolley into routine hygiene-management procedures.
Extended Folding Rails Combine Protection with Caregiver Access
Stainless Steel Side Rails on Both Sides
Both sides of the trolley are equipped with extended folding stainless steel side rails. When raised and locked, the rails provide additional lateral protection for patients who may have limited mobility or difficulty maintaining a stable position independently.
The rail structure is designed to withstand vertical pulling or pushing loads of up to 100 kg, providing a robust protective barrier during routine use.
180° Rotating Design after the Rail Is Lowered

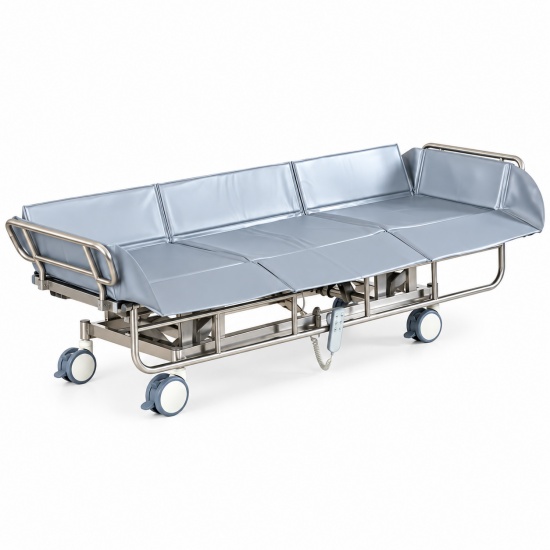

Protection is only useful if it does not prevent caregivers from reaching the patient when necessary. For transfer, cleaning or other procedures requiring open lateral access, the rails can be released and lowered.
Once lowered, the rail structure can rotate through up to 180°. This allows the side of the bathing platform to be opened more completely and reduces obstruction during patient handling.
Mobility Designed for Institutional Care Environments
Four 5-Inch Quiet Swivel Casters
The trolley is fitted with four 5-inch swivel casters, allowing it to be repositioned within patient rooms, bathing areas and other care spaces. Wear-resistant wheel surfaces and self-lubricating bearings support smooth and relatively quiet movement during everyday operation.
Independent Braking on Each Caster
Each caster incorporates an individual brake so that the trolley can be secured after it has reached the required working position.
This model uses individually lockable casters rather than a central locking brake system, providing a straightforward mobility and braking configuration for routine patient-care applications.
240 kg Load Capacity with Reinforced Structural Support
The complete trolley has a rated load capacity of 240 kg. This capacity is supported by the stainless steel main frame, reinforced connecting components and double-V support arrangement within the moving platform.
For procurement teams, evaluating an electric bathing trolley should involve more than checking the number of motors. Frame construction, moving support structure, side rail strength, patient surface materials and caster configuration all affect how the equipment performs in repeated institutional use.
Why Electric Adjustment Matters in Assisted Bathing
Fixed-Height Equipment Creates a Fixed Working Position
With conventional fixed-height bathing equipment, caregivers must adapt themselves to the equipment throughout the procedure. This can become inconvenient when bathing involves multiple stages requiring access to different areas of the patient's body.
Powered Height Adjustment Changes the Working Level
An electrically adjustable platform provides another approach. The caregiver can change the trolley height according to the procedure instead of relying on one permanent working level.
Tilting Adds Another Dimension of Positioning
The second powered function allows the platform to be tilted when required. Together, electric height adjustment and electric tilting create a more flexible working platform than a conventional fixed bathing trolley.
Designed for Patients Who Cannot Use Conventional Bathing Equipment
This electric bathing trolley is intended for assisted-care situations involving patients who cannot safely complete normal showering or bathing procedures without substantial support.
Typical users may include bedridden patients, elderly residents, rehabilitation patients and people with significant mobility limitations who require caregiver assistance throughout hygiene procedures.
Suitable for Professional Healthcare Applications
The trolley can be used in hospitals, rehabilitation centers, nursing facilities, elderly care institutions and other healthcare environments where assisted bathing forms part of routine patient care.
Its electric positioning functions are particularly relevant to organizations seeking to improve the practical workflow around repeated bathing and hygiene procedures.
Key Technical Specifications
Overall Dimensions: 2150 × 870 × 680–900 mm, including side rails.
Internal Dimensions: 1950 × 630 × 430–660 mm, excluding side rails.
Platform Height Range: 430–660 mm, excluding side rails.
Electric Functions: Powered height adjustment and powered tilting.
Motor System: Two electric actuators, with one actuator assigned to each powered function.
Main Frame: 30 × 60 × 1.1 mm stainless steel rectangular tubing.
Platform Connecting Components: 25 × 38 mm stainless steel components.
Support Structure: Reinforced double-V load-distribution design.
Side Rails: Extended folding stainless steel side rails with locking mechanisms.
Side Rail Rotation: Up to 180° after lowering.
Side Rail Load Resistance: Up to 100 kg vertical pulling or pushing load.
Bathing Surface: High-toughness waterproof material with high-density EVA padding.
Cleaning: Removable bathing surface for cleaning and disinfection.
Casters: Four 5-inch quiet swivel casters.
Brake System: Individual caster brakes.
Load Capacity: 240 kg.
Electric Bathing Equipment for Healthcare Projects and Distributors
For medical equipment distributors and institutional procurement projects, this model provides a specialized electric bathing solution built around two practical requirements: adjusting the patient's working height and providing additional positioning flexibility during assisted hygiene care.
The combination of electric adjustment, stainless steel construction, waterproof padding and folding side protection makes the trolley suitable for healthcare buyers seeking dedicated bathing equipment rather than adapting conventional patient beds for wet-care applications.
