Electric Tilt-Up Rehabilitation Bed with Multi-Position Adjustment
Designed for care environments where patients require both daily positioning assistance and progressive standing rehabilitation, this multifunction electric rehabilitation bed integrates several powered adjustments into one platform. The electric system controls tilt-up standing, backrest positioning and leg section adjustment, allowing caregivers to change the user's position without repeatedly transferring the patient between separate pieces of equipment.
The bed measures 2130 × 1120 × 540 mm and combines a professional rehabilitation structure with a wood-finish exterior. This makes it particularly suitable for facilities seeking functional rehabilitation equipment while maintaining a warmer and more residential room environment.
Three Electric Adjustments for Different Stages of Care
Electric Tilt-Up Adjustment from 0° to 75° ±5°
The powered tilt-up mechanism is the primary rehabilitation function of this model. The bed platform can be progressively raised from the horizontal position to a maximum standing angle of approximately 75° ±5°. Intermediate positions can be selected according to the rehabilitation program and the user's tolerance under professional supervision.
This controlled transition makes the product different from a conventional adjustable care bed. It functions as specialized Standing Bed equipment while retaining practical positioning capabilities for routine patient care.
Independent Backrest Adjustment from 0° to 65° ±5°
The back section can be electrically raised through a range of 0°–65° ±5°. This provides a convenient way to move the upper body from a flat resting position toward a supported semi-sitting or sitting posture.
Backrest adjustment can be used during routine activities such as feeding, communication and personal care, reducing the need for caregivers to reposition the upper body manually.
Electric Leg Section Adjustment from 0° to 35° ±5°
The leg platform offers a powered adjustment range of 0°–35° ±5°. By combining leg positioning with backrest movement, the bed can accommodate different resting and rehabilitation postures according to individual care requirements.
From Lying Position to Sitting and Standing Training
One Platform for Multiple Positioning Requirements
A major advantage of this model is its ability to support different stages of positioning on the same bed. The user can remain on the platform while the electric mechanisms assist with changes between horizontal resting, raised-back positioning, chair-style positioning and progressive tilt-up training.
For facilities managing patients with limited mobility, this integrated approach can simplify equipment planning because daily positioning and standing rehabilitation functions are available within one system.
Chair-Style Positioning for Daily Activities
Coordinated backrest and leg adjustments allow the mattress platform to form a more seated configuration. This position can be useful when the user needs a more upright posture without immediately proceeding to standing training.
Progressive Transition Toward an Upright Position
When standing rehabilitation is required, the electric tilt mechanism gradually changes the angle of the complete support platform. The progressive movement provides caregivers and rehabilitation professionals with greater flexibility than equipment designed around only a fixed standing position.
Multi-Point Support for Standing Procedures
Adjustable Safety Support Straps
The bed is equipped with multiple support straps positioned along the upper body and lower limbs. These straps provide additional stabilization when the platform is raised toward the standing position.
The multi-point arrangement is especially important during tilt-up rehabilitation because body support requirements change as the platform moves away from the horizontal position. Strap positioning can be adjusted according to the user's body dimensions and the requirements of the supervised rehabilitation procedure.

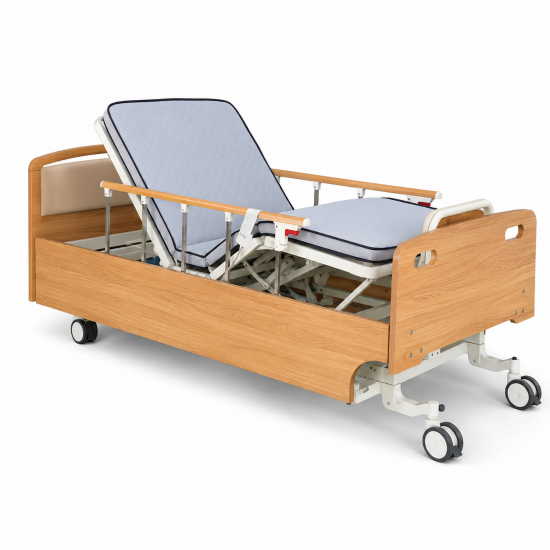

Wood-Finish Exterior for Less Institutional Care Spaces
Rehabilitation Technology with a Residential Appearance
Many conventional rehabilitation beds emphasize exposed metal structures and a strongly clinical appearance. This model uses wood-finish head, foot and surrounding panels to create a softer visual profile while retaining the functional structure required for electric positioning and standing rehabilitation.
The design allows the bed to integrate more naturally into nursing homes, senior rehabilitation facilities, assisted living environments and long-term care rooms where interior appearance is an important part of the overall care experience.
Suitable for Coordinated Elderly Care Equipment Projects
For projects combining rehabilitation equipment with conventional elderly care furniture, the residential exterior also makes this model easier to coordinate visually with other Nursing Bed configurations used throughout the facility.

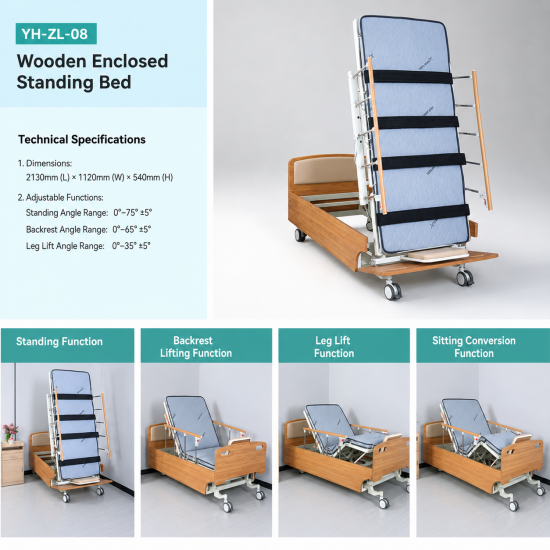

Technical Configuration
Dimensions and Electric Adjustment Ranges
Overall Size
2130 × 1120 × 540 mm.
Tilt-Up / Standing Range
0°–75° ±5°, electrically controlled.
Backrest Range
0°–65° ±5°, electrically controlled.
Leg Section Range
0°–35° ±5°, electrically controlled.
Patient Support
Multi-point adjustable support straps for stabilization during supervised positioning and standing rehabilitation.
Exterior Style
Wood-finish surrounding panels designed to create a more residential appearance in long-term care and rehabilitation environments.
Who Is This Electric Rehabilitation Bed Designed For?
This model is intended for professional care environments that require more than basic electric bed positioning. Typical applications include rehabilitation centers, elderly rehabilitation facilities, nursing homes, assisted living facilities and long-term care institutions.
For medical equipment distributors and project buyers, the combination of electric positioning and standing capability also provides a differentiated option between conventional care beds and dedicated rehabilitation equipment.
A Different Positioning from Basic Electric Standing Beds
This model should not be viewed simply as another electric standing platform. Its independent backrest and leg adjustment functions broaden its use during everyday care, while the wood-finish surround gives the product a distinctly different positioning from basic clinical rehabilitation models.
Buyers comparing configurations for different rehabilitation requirements can explore our complete Standing Bed range to evaluate suitable functional levels and designs.
Electric Care and Rehabilitation in One Integrated System
By combining a 75° electric tilt-up range with independent backrest and leg adjustment, this rehabilitation bed provides a flexible platform for facilities that need both positioning assistance and standing rehabilitation capability. Its residential-style exterior further extends its suitability beyond conventional hospital rehabilitation departments into elderly and long-term care environments.
For product configurations, OEM requirements, distributor inquiries or project quotations, please contact us with your required quantity and intended application.
